The outdoor condenser must be placed in a well-ventilated, shaded, and stable location to prevent mechanical strain and ensure your system operates at peak energy efficiency. Positioning the unit correctly during your split system installation is not merely about finding available floor space; it is about protecting the compressor from the heat load and vibration that shorten the lifespan of your cooling investment.
If you treat the outdoor unit as an afterthought, you risk restricted airflow, structural noise, and premature component failure. Every location has specific trade-offs, and your goal should be to minimize environmental interference before the pipes are even connected.
Does the unit have enough clearance?

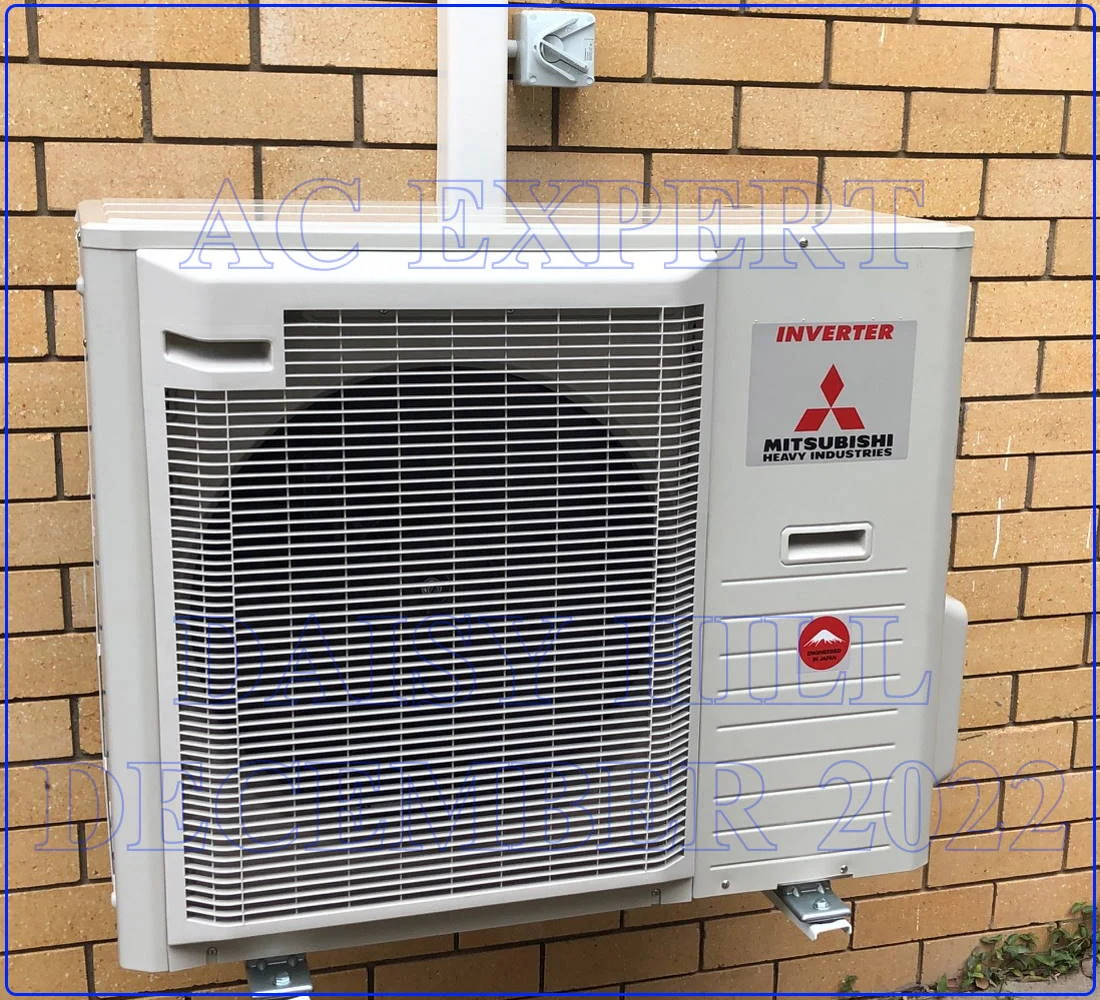

A condenser requires consistent, cool air intake to function. The industry standard is a minimum of 500mm of clearance in front of the fan and 300mm behind and to the sides of the housing. If you place the unit too close to a fence, a wall, or dense vegetation, the fan pulls back the hot air it just expelled. This creates a “short-circuit” effect where the compressor must work significantly harder to reach the target cooling temperature, driving up your power consumption.
- The fence trap: Placing a unit directly against a timber or Colorbond fence often leads to the build-up of leaves and debris, which chokes the intake coil.
- Growth margins: Always account for how fast your garden grows. A unit that clears a garden bed today might be encased in foliage by next summer.
Will the wall vibrate at night?
Mounting an outdoor unit on a lightweight, timber-framed wall is the most common cause of internal noise complaints. The compressor creates a low-frequency hum that can travel directly through the studs of your home and into your bedrooms or living rooms. Even if the unit is quiet, the house structure can act as an amplifier.

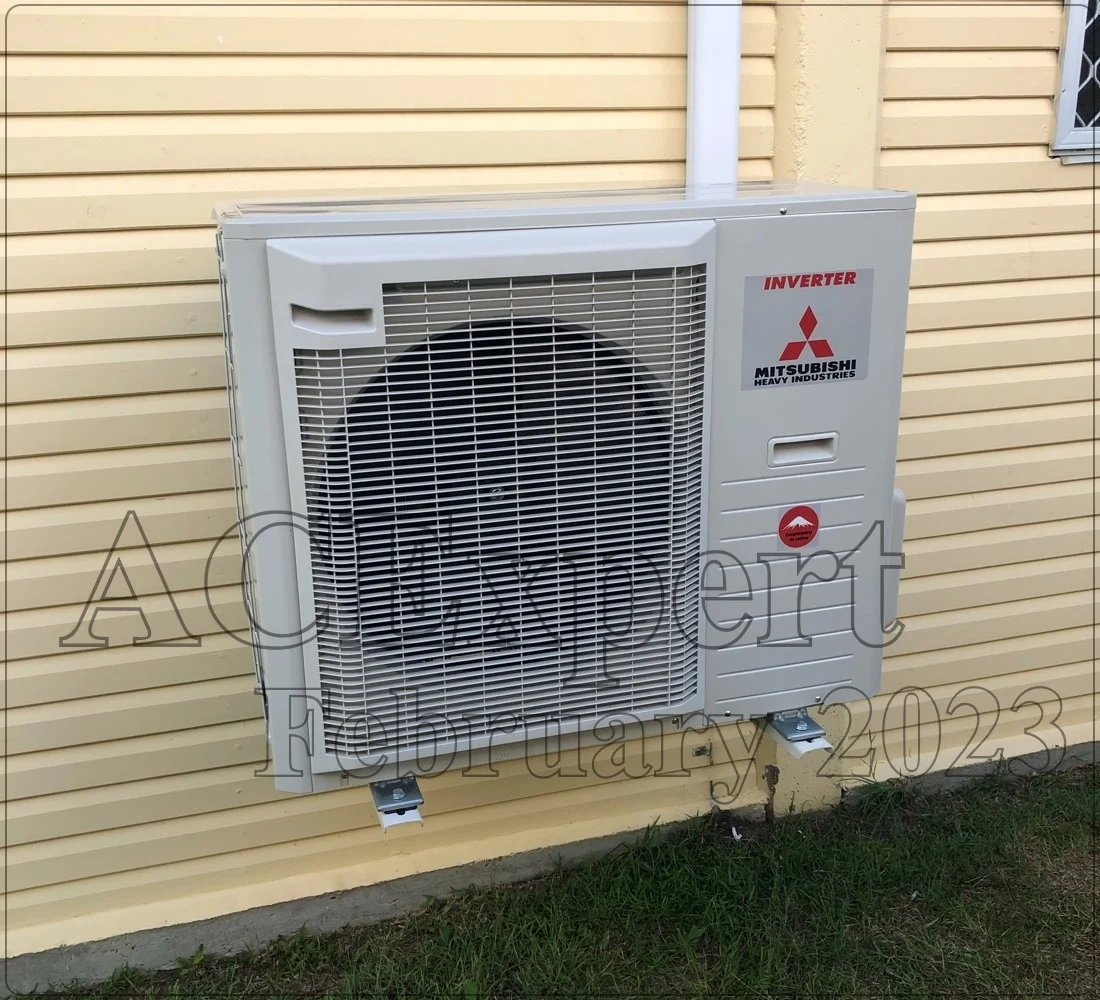

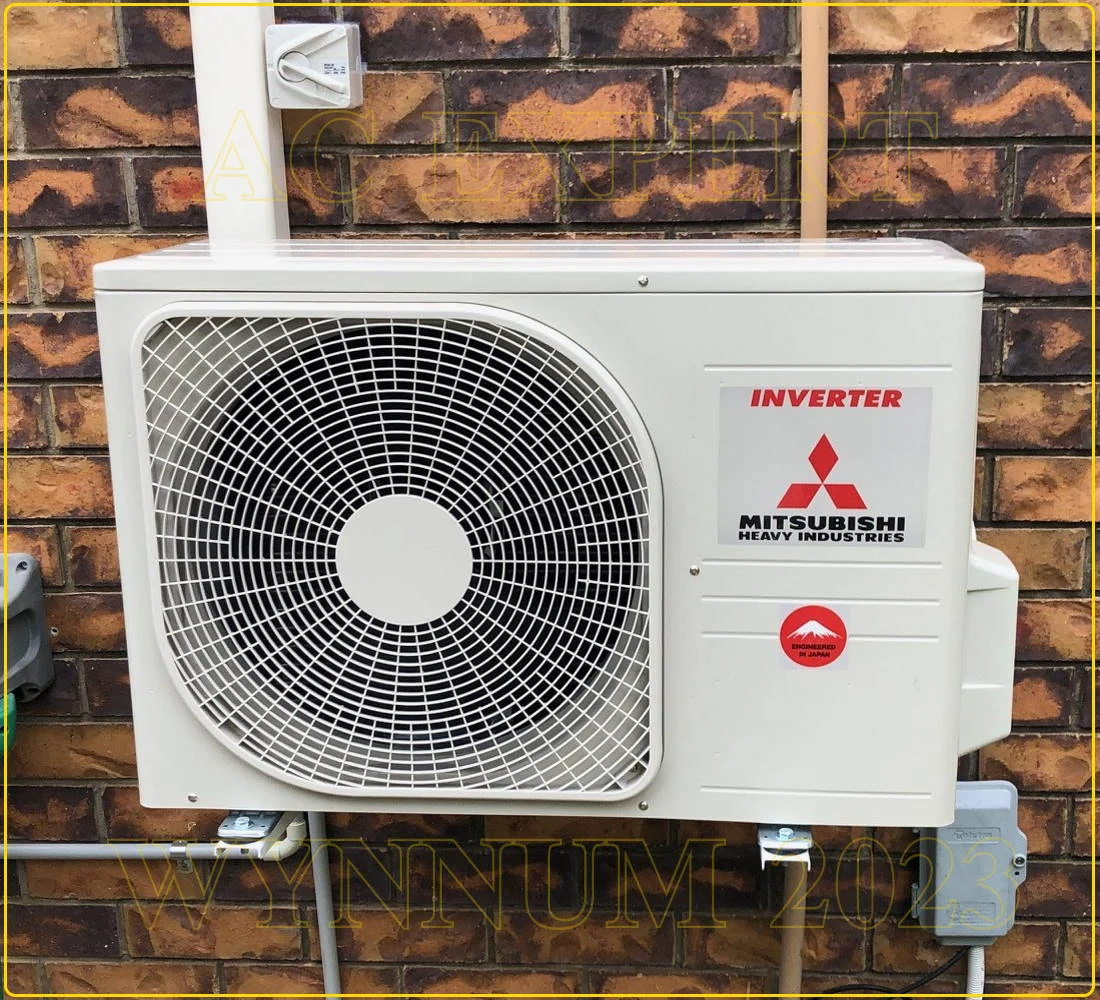

When we conduct a site assessment for a split system installation, we prioritize ground-level mounting on a solid concrete slab. If a wall-mounted installation is your only option due to space limitations, we use heavy-duty, engineered brackets fitted with dedicated rubber dampening grommets to decouple the unit from the building frame. If you have the choice, ground mounting is always the superior path to a quieter home.
Is the base solid and level?
Refrigerant lines are sensitive to movement. If your outdoor condenser sits on loose soil, gravel, or uneven pavers, the ground will inevitably settle over time. As the base shifts, the unit tilts, which puts unnecessary mechanical torque on the flare joints where the copper pipes connect to the unit. A tilted unit can eventually lead to refrigerant leaks, which are complex and expensive to repair.
We insist on a rigid, level platform for every unit. This ensures the oil returns to the compressor correctly and the internal components remain balanced. Whether using a pre-cast slab or a high-quality, level mounting frame, the foundation must be perfectly horizontal to prevent internal stress on your cooling system.
Can you escape the afternoon sun?
Brisbane’s western sun is the primary enemy of air conditioner efficiency. When a condenser is blasted by direct afternoon heat, the ambient temperature surrounding the unit rises far above the actual air temperature. This forces the system to run in a perpetual state of heat soak, pushing the compressor to its limits just to compensate for the extreme environment.
Selecting a location on the southern or eastern side of your home can provide natural shade during the hottest part of the day. If you are forced into a western-facing position, we recommend installing a shade feature, such as a strategic garden screen. Avoid fully enclosing the unit; any box that traps heat will suffocate the system and lead to a rapid decline in cooling capacity.
Are walkways protected from heat?
Consider what your unit discards. A condenser expels a high-velocity stream of hot, dry air. If this is directed toward a frequently used path, a swimming pool deck, or a window that you often keep open, it creates an uncomfortable microclimate. Furthermore, the unit generates condensation while cooling. If the drain point is poorly planned, you will end up with stained concrete or a muddy, mossy patch of dirt directly beneath the unit.
During our site assessment, we map out the discharge path to ensure water and heat are directed away from your living areas, preferably into a dedicated soakaway. This foresight keeps your property dry and ensures the airflow does not interfere with your outdoor lifestyle.
Schedule your professional site assessment
The placement of your condenser is a permanent decision that dictates the energy efficiency and longevity of your equipment. We do not use a “one-size-fits-all” approach to planning your split system installation. We inspect your home layout, wall structure, and site orientation to ensure the unit is positioned to perform at its best. Call us at 0420 718 827 to book a site assessment so we can identify the optimal location for your installation before any work begins.
