You have likely picked the perfect spot for your new air conditioner, but once you start drilling into your Brisbane home’s walls, you might find that your dream location is a structural nightmare. A successful split system installation requires balancing technical clearance requirements with structural integrity to avoid costly wall reinforcements or inefficient cooling cycles. Choosing the wrong mounting point can lead to sagging units, leaking condensate, or a system that struggles to cool because it cannot breathe.
Every professional project begins with a pre-installation site survey. During this phase, we assess your wall types and internal layout to verify that your proposed location can support both the weight of the hardware and the thermodynamic requirements of the room. This process prevents the common installation errors that turn a home cooling project into a structural repair job.
Does Your Wall Support The Load?
The weight of an indoor unit is not static; it includes the mass of the internal coil, the mounting bracket, and the constant vibration of the fan motor. Mounting these units onto standard plasterboard without reinforcement is a primary cause of wall failure in Queensland homes. Over time, the vibration will cause the fixings to loosen, leading to a sagging unit that puts unnecessary stress on the piping connections.

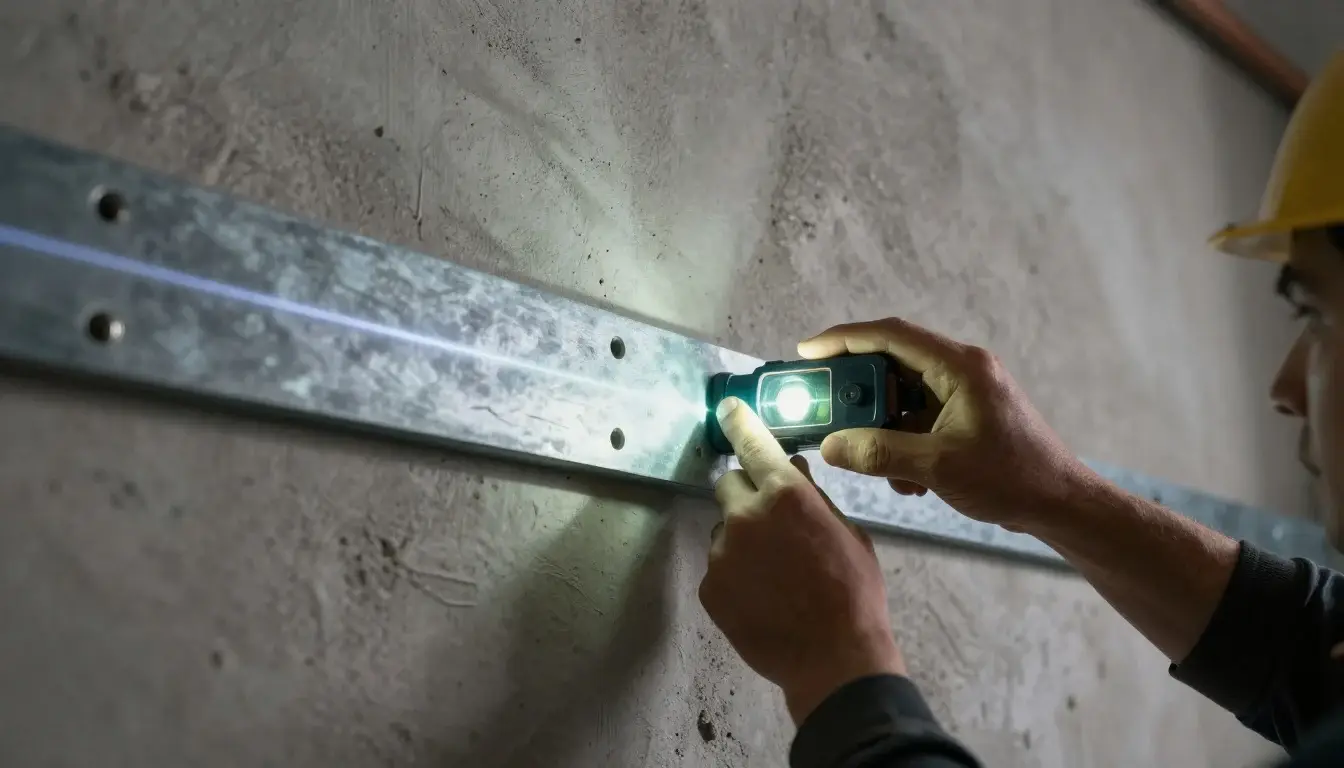

Brick and masonry are the only surfaces that reliably support a mounting plate without supplemental work. If you are attaching to timber-framed or plasterboard walls, the plate must be anchored directly into structural studs. If your ideal position misses these studs, you must install internal timber backing. While this adds to the project duration, it is the only way to ensure the wall remains rigid and the unit stays level for its entire operational life.
Why Is 15cm Clearance Essential?
Indoor units are high-performance heat exchangers, not decorative wall fixtures. If you mount a unit too close to the ceiling or inside a tight alcove, you effectively choke the system. We strictly observe a minimum 15cm clearance requirement for the top and sides of the unit. This space is mandatory for two physical reasons:
- Air Intake: The fan requires a consistent draw of ambient air to pull across the evaporator coils. Restricted clearance forces the motor to run at higher speeds to compensate for low intake, which increases noise and leads to premature wear on the fan bearings.
- Maintenance Access: You must be able to remove the air filters easily. If you trap the unit in a confined space, the filters become difficult to access, ensuring they will likely go uncleaned. Clogged filters are the fastest path to poor indoor air quality and ice buildup on the internal coils.
How Do You Prevent Condensate Stains?
Internal wall staining is almost always a result of poor drainage geometry. Because moisture is pulled directly from the air during the cooling process, it must be directed outside through a drain pipe. The unit must be mounted with a precise, calculated tilt toward the drain outlet to allow gravity to evacuate this water.
If the mounting plate is not perfectly aligned during the split system installation, or if the wall has a slight lean, water will pool inside the internal tray. Standing water in the tray acts as a breeding ground for mold, which is then circulated back into your room through the vents. In extreme cases, the tray overflows and runs down your wall, causing permanent damage to plaster and paint. We test the drainage path using a water level gauge before finalizing any pipe connections to ensure the gradient is sufficient.
Is Your Thermostat Sensing Heat Correctly?
Positioning a unit directly above a television or a kitchen stove is a common error that compromises comfort. These appliances generate localized micro-climates. If your air conditioner’s intake sensors pick up heat from a nearby TV or stove, the system will assume the entire room is warmer than it actually is. This causes the compressor to run continuously, driving up your energy consumption to battle a heat source that is not representative of the room’s actual temperature.
Furthermore, you must avoid “dead zones.” If you place a unit behind a set of heavy curtains or recessed deep into a corner, the cold air will bounce off nearby obstructions and be sucked back into the intake immediately. The system will “short-cycle,” turning the compressor off and on repeatedly because it thinks the target temperature has been reached. For the best performance, choose a location with an open, unobstructed line of sight to the center of the room.
Can You Minimize External Pipework?
The length of the electrical and refrigerant lines—the trunking visible on the exterior of your home—affects both aesthetics and efficiency. Every meter of additional piping requires the refrigerant to travel further and increases the pressure drop across the system. Our goal is to locate the indoor unit as close to the outdoor compressor as possible while still maintaining ideal airflow inside. By minimizing the length of these lines, we reduce the visual impact on your home’s exterior and keep the system operating at peak performance. If you are uncertain about your wall’s suitability, call us at 0420 718 827 to schedule your pre-installation site survey and verify your plan before any drilling begins.
